High-Performance NA 0.22 Optical Fiber with 1500μm Fiber-core for 350-2500nm Wavelength Range

1
MOQ
High-Performance NA 0.22 Optical Fiber with 1500μm Fiber-core for 350-2500nm Wavelength Range
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Faserkerndurchmesser: 1500 μm
Numerische Blende: 0,22
Wellenlängenbereich: 350 bis 2500 nm
Anschlusstyp: SMA905, FC
Paketabmessungen: 25X20X1 cm
Faser-Material: Quarz / Polyimid
Silica-Kern: Ja
Polymerverkleidung: Ja
ETFE-Beschichtung: Ja
Kern/Mantel-Verhältnis: 1.1 bis 1.2
Leistungsschwelle: 1 GW/cm2 (gepulst), 2 MW/cm2 (kontinuierlich)
Biegerradius: Klein
Zugfestigkeit: Hoch
Flexibilität: Sehr gut
Option mit Silikonschlauch: ja/nein
Hervorheben:

NA 0.22 Optical Fiber

,

1500μm Fiber-core Optical Fiber

,

350-2500nm Wavelength Range Fiber Optic Patch Cord
Grundinformation
Herkunftsort: Guangdong, China
Markenname: Hicorpwell
Modellnummer: HCW 1500/1650/920/1850/2200 NA 0.22
Zahlung und Versand AGB
Produkt-Beschreibung
High-Performance Optec NA 0.22 Specialty Optical Fiber
Premium quality fiber optic equipment available in diameters from 200µm to 1500µm with wavelengths of 1500/1650/920/1850/2200.

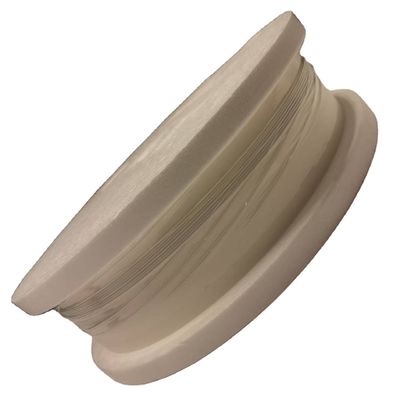

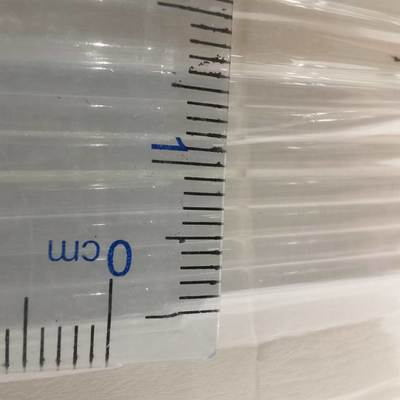

High-Performance NA 0.22 Optical Fiber with 1500μm Fiber-core for 350-2500nm Wavelength Range 0 High-Performance NA 0.22 Optical Fiber with 1500μm Fiber-core for 350-2500nm Wavelength Range 1
Medical Fiber Probe Specifications
A medical fiber probe consists of optical fiber protected by a coating or jacket with two specifically prepared ends:
  • One end typically features a connector for laser interfacing
  • The distal end can be cleaved, polished, or specially designed (angle, side-fire, sphere, protective glass, etc.)
Critical Selection Factors
Proper fiber selection requires consideration of:
  • Laser source specifications: Wavelengths, power level, spot size, input/output NA
  • Design parameters: Maximum external diameter, length, specific design, bend radius
  • Environmental factors: Temperature, chemical exposure, biocompatibility, sterilization method

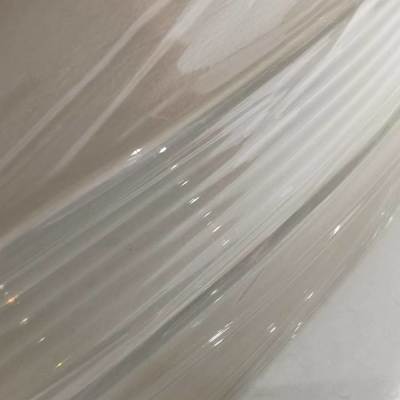

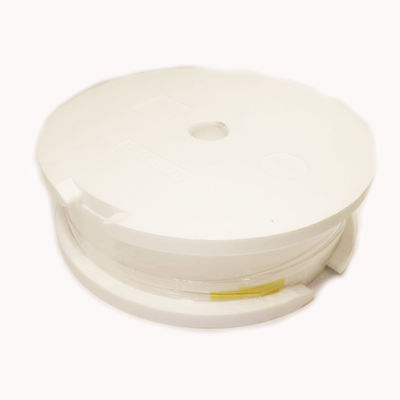

High-Performance NA 0.22 Optical Fiber with 1500μm Fiber-core for 350-2500nm Wavelength Range 2 High-Performance NA 0.22 Optical Fiber with 1500μm Fiber-core for 350-2500nm Wavelength Range 3
Hicorpwell Large Core Diameter Fibers
Features silica core with hard polymer cladding and ETFE coating:
  • Large core diameter with high NA (0.37) for efficient laser coupling
  • Excellent tensile strength and flexibility for medical applications
  • Cost-effective design with disposable probe compatibility
Silica/Silica Fibers
Key features for high-power medical applications:
  • Large core with 0.22 NA
  • Polyimide coating option available
  • Compatible with Nd YAG, diode, and Ho YAG lasers
  • High power damage threshold (1 GW/cm² for pulsed, 2 MW/cm² for continuous)

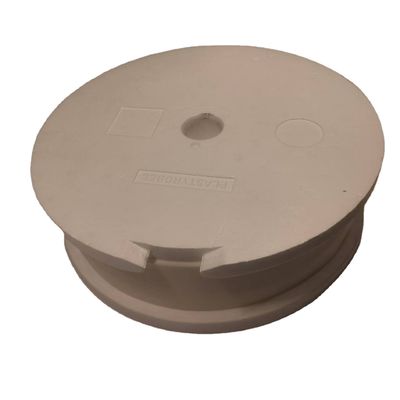

High-Performance NA 0.22 Optical Fiber with 1500μm Fiber-core for 350-2500nm Wavelength Range 4
Technical Specifications
Parameter Options
Connector SMA905 / FC
Core [μm] 200, 300, 400, 600, 800, 1000
Length [m] 3
Silicon tube Yes / No
Fiber Material Quartz / Polyimide
Wavelength range 350-2500nm
Advantages of Hicorpwell Silica Fibers
Superior power handling and wavelength range compared to standard fibers:
  • Higher core-to-clad ratio (1.1 to 1.2) prevents damage from cladding energy
  • Recommended spot diameter fills no more than 2/3 of fiber core
  • Improved power transmission with proper beam focus
Product Variants
Product Code Description
6149 MMF-IRVIS-50/125-0.25-L 0.25mm OD coated, 50/125μ multimode Gradient Index IRVIS fiber
3715 MMF-IRVIS-62.5/125-0.245-L 0.24mm OD, 62.5/125um IRVIS GI MM fiber
17017 MMF-IRVIS-100/140-0.25-L 0.25mm OD coated, 100/140μ multimode Gradient Index IRVIS fiber
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are factory verified by TUV.
Q2: What is your delivery time?
A: Generally, samples: 3-5 working days. Formal orders: 7-10 working days.
Q3: Do you provide OEM service?
A: Yes, we can print your logo or label on products or packaging.
For more information or a competitive quotation, please contact us.
