Kabeltyp:Stahlkabeltrommel und Wickeltrommel. Kabeltrommel-Wickelmaschine
Bruttogewicht:78 kg
Farbcoat Farbe:Schwarz oder orange oder gelb, andere
Kabelzweck:Projekt-Anwendung
Länge:500 m bis 1000 m

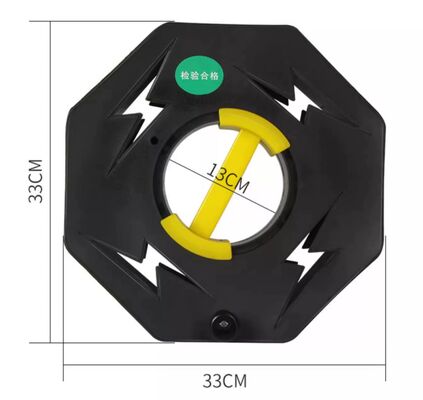

Größe:630x400
Paket:630*400*475 mm
Kapazität:500 m bis 1000 m
Hervorheben:
steel cable drum reel
,
retractable cable reel holder
,
mini fiber optic cable drum
Grundinformation
Herkunftsort:China
Markenname:HICORPWELL
Zertifizierung:IEC 60794-2-10/11
Modellnummer:Aufwickeln und Aufrollen von Stahldrahtseilen auf Trommelspulen
Zahlung und Versand AGB
Verpackung Informationen:630*400*475 mm
Zahlungsbedingungen:Western Union, l/c, t/t
Versorgungsmaterial-Fähigkeit:500 Stück pro Woche
Galerie

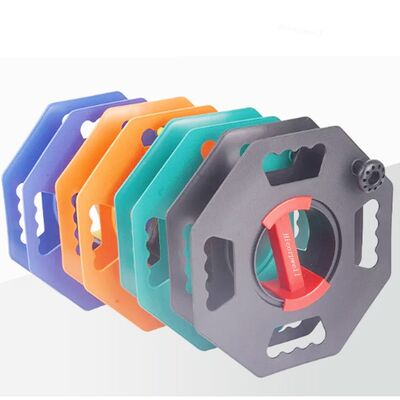

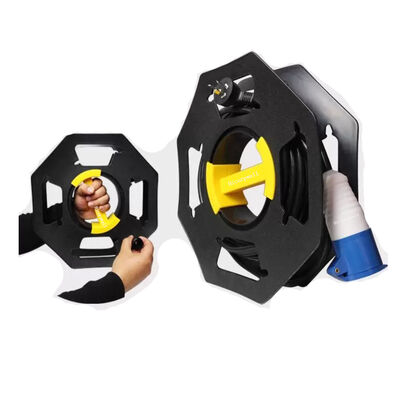

Re-Reeling Wire Ropes Steel Cable Drum Mini Small Retractable Cable Reel Stand Roller Cable Reel Drum Holder Cable Drum Roller
Produkt-Beschreibung
Re-Reeling Wire Ropes Steel Cable Drum
This mini small retractable cable reel stand roller provides superior wire rope management for industrial applications. Designed as a cable drum holder and roller, it offers enhanced protection and efficiency compared to ordinary cable drums.
Key Advantages
Enhanced Wire Rope Protection: Smooth barrel surface with grooved guiding design prevents scratches, kinks, and slippage during re-reeling, extending service life and ensuring operational safety.
High Durability & Long Service Life: Constructed from high-quality mild steel or stainless steel with excellent strength, wear resistance, and corrosion resistance. Reinforced structure prevents deformation in harsh working environments.
Improved Operational Efficiency: Scientific design with spindle bush for smooth rotation and optional integrated drive systems enables automated or semi-automated re-reeling, reducing manual labor.
Strong Versatility & Adaptability: Available in various sizes, flange designs, and material options to meet different wire rope specifications and application scenarios.
Easy Maintenance & Cost-Effectiveness: Simple robust structure with enclosed slip ring assemblies (IP 55 protection) makes cleaning and maintenance easy, reducing long-term costs.
Wire Rope Winding Orientation
The right hand is typically used for determining right-lay wire ropes and the left hand for left-lay wire ropes when standing toward the drum. Many crane models feature two-sided grooved drums for winding wire ropes as shown below.
Two Side Grooved Drums - Configuration 1
Two Side Grooved Drums - Configuration 2
Proper Re-reeling Techniques
When re-reeling steel wire ropes from horizontally supported reels to another drum, ensure the rope travels from the top of the reel to the top of the drum or bottom to bottom to avoid reverse bends.
Correct Re-reeling Method
Incorrect Re-reeling Method - Example 1
Incorrect Re-reeling Method - Example 2
Important Notes:
When re-reeling steel wire ropes, ensure the drum surface is clean, smooth, and dry to protect wire ropes from damage by foreign particles. For reels with vertical shafts, maintain constant rope tension to avoid slack accumulation during re-reeling operations.
